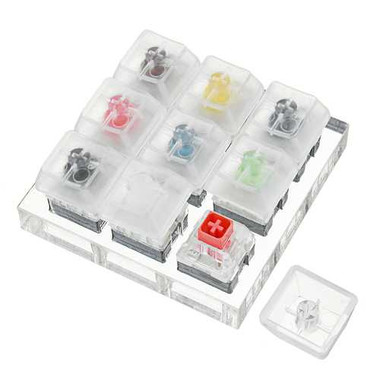

9 Key Kailh BOX Switch Keyboard Switch Tester with Acrylic Base and Clear Keycaps C122-1293908
Unbranded
$25.69
SKU:
C122-1293908
Weight:
0.11 LBS
Shipping:
Calculated at checkout
Maximum Purchase:
3 unit(s)
Product Description
Specification:1. Item: Switch Tester2. Switch Type: Kailh BOX Switch3. Keys Amount: 9 PCS (Black Switch, Red Switch, Brown Switch, White Switch, Heavy Pale Blue Switch, Heavy Dark Yellow Switch, Heavy Burnt Orange Switch, Jade Switch, Navy Switch)
Features:1. A good sample to try Kailh BOX switch.2. Mounted on PCB to simulate actual key feeling.3. Equipped with acrylic base and clear keycaps.Package Included:1 * 9 Key Kailh BOX Switch Keyboard Switch Tester with Acrylic Base and Clear Keycaps
| BOX Red | BOX Black | BOX Brown | BOX White | Heavy Pale Blue | |
| Type | Linear | Linear | Tactile | Clicky | Clicky |
| Operating Force | 45gf(+/- 10gf) | 60gf(+/- 10gf) | 50gf(+/- 10gf) | 50gf(+/- 10gf) | 60gf(+/- 15gf) |
| Tactile Force | - - | - - | 60gf(+/- 10gf) | 55gf(+/- 10gf) | 70gf(+/- 10gf) |
| Pretravel | 1.8mm(+/- 0.3mm) | 1.8mm(+/- 0.3mm) | 1.8mm(+/- 0.3mm) | 1.8mm(+/- 0.3mm) | 1.8mm(+/- 0.3mm) |
| Total Travel | 3.6mm(+/- 0.3mm) | 3.6mm(+/- 0.3mm) | 3.6mm(+/- 0.3mm) | 3.6mm(+/- 0.3mm) | 3.6mm(+/- 0.3mm) |
| Reset Point | 1.8mm | 1.8mm | 1.8mm | 1.8mm | 1.8mm |
| Heavy Dark Yellow | Heavy Burnt Orange | Jade | Navy | ||
| Type | Tactile | Tactile | Clicky | Clicky | |
| Operating Force | 60gf(+/- 15gf) | 60gf(+/- 15gf) | 50gf(+/- 15gf) | 60gf(+/- 15gf) | |
| Tactile Force | 70gf(+/- 10gf) | 70gf(+/- 10gf) | 75gf(+/- 10gf) | 95gf(+/- 15gf) | |
| Pretravel | 1.8mm(+/- 0.3mm) | 1.8mm(+/- 0.3mm) | 1.8mm(+/- 0.3mm) | 1.8mm(+/- 0.3mm) | |
| Total Travel | 3.6mm(+/- 0.3mm) | 3.6mm(+/- 0.3mm) | 3.6mm(+/- 0.3mm) | 3.6mm(+/- 0.3mm) |
